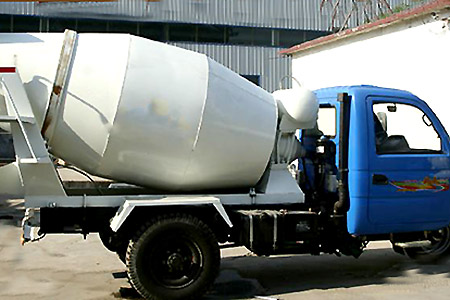

1.6cbm Concrete Mixing Truck

What is the cubage of shell you need?

What is the steering wheel direction? Left of right?

How about the emission standard in your local site?

The machine's trait:don not rely on the power of outside ,optimal barycenter and structure designing,beautiful and natrual the whole looking,working smoothly.the hydraulic elements use high quality products of national key leading enterprise ,mechanical parts structre is reasonable,easy and simple to handle and have reiable operation.the car’s mixing drum can keep turning on the road,avoiding the slurry discrete and sediment.It can insure the quality in the process of mixtrue slurry in transportation.

Tags: boom de colocación de concreto en Telmas de Chillánbomba de hormigón sany en Puerto riconuevo minicargador de gato para la venta en Perualquiler mezcladora de concreto en Isla Diego Ramires

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

Technical data of 1.6cbm
Name	1.6cbm mixing truck	Model of engine	LD km160B
Chassis model	Wuzheng 1600-1 three wheels series	Engine type	Forced circulation cooled
Total weight (kg)	2560	Engine displacement (L)	1.38
Dimension L*W*H(mm)	5300*1650*2600	Engine power (kW)	19.8
Wheel base(mm)	3000	Max. standard engine speed(r/min)	2200
Front overhang(mm)	400	Barrel geometric volume (m³)	2
Rear overhang(mm)	2200	Max. mixing volume (m³)	1.6
Max. gradeability(degree)	20	Feed rate (m³)	≥0.5
Max. speed(km/h)	≤50	Discharge rate (m³)	≥0.8
Turning diameter (m)	≤15	Max. rotate speed (r/min)	6-10
clutch	double dry type clutch	Barrel slope (°)	13.14
Transmission type	Belt type	Diameter of mixing barrel (mm)	Φ1400
Drive mode	rear wheel drive	Gear box	Ky67-3-c
Steering mode	Steering wheel	Hydraulic pump	50 gear pump
Service brake	Single pipeline rear brake	Hydraulic motor	gerotor motor
Parking brake	Mechanical rear brake	Water tank volume (L)	62
Tyre	825-16	Water supply way	Air pressure
